How to add SonarQube scans and see their results from a Github PR

Have you been told SonarQube checks are great and that you should have them in your codebase? And have you thought… hmmm… okay, sure, why not? But how do I do that…? Fear not, we can do it together.

For this tutorial we’ll use a Java/Maven project as our basis and Jenkins as our CI tool. We’ll be setting SonarQube PR analysis using Jenkinsfiles and Docker. Ready? Cool, let the fun begin!

Let’s start assuming that you already have your SonarQube account created and keep going from there, okay? Something important to mention here also is that at the time of this writing, it’s required to have a SonarQube developer account for one to be able to add Github PR decorations. For many other things, you may still be okay with the community version though, and can still see SonarQube results, so if you’re only interested in this part, this article should still be okay for you.

As the sample used here will be a Java Maven repository, we’ll need to add a few things to our .pom file.

<sonar.version>3.4.0.905</sonar.version>
<jacoco-maven-plugin.version>0.8.5</jacoco-maven-plugin.version>
<plugin>
    <groupId>org.sonarsource.scanner.maven</groupId>
    <artifactId>sonar-maven-plugin</artifactId>
    <version>${sonar.version}</version>
</plugin>
<plugin>
    <groupId>org.jacoco</groupId>
    <artifactId>jacoco-maven-plugin</artifactId>
    <version>${jacoco-maven-plugin.version}</version>
    <configuration>
        <destFile>${basedir}/target/jacoco.exec</destFile>
        <dataFile>${basedir}/target/jacoco.exec</dataFile>
    </configuration>
    <executions>
        <execution>
            <id>jacoco-initialize</id>
            <goals>
                <goal>prepare-agent</goal>
            </goals>
        </execution>
        <execution>
            <id>jacoco-site</id>
            <phase>verify</phase>
            <goals>
                <goal>report</goal>
            </goals>
        </execution>
        <execution>
            <!-- Rules for configuring build failure below a threshold limit based
                on code coverage value using Jacoco -->
            <id>check</id>
            <goals>
                <goal>check</goal>
            </goals>
            <configuration>
                <excludes>
                    <exclude>**/*config*.*</exclude>
                </excludes>
                <rules>
                    <rule implementation="org.jacoco.maven.RuleConfiguration">
                        <element>BUNDLE</element>
                        <limits>
                            <limit implementation="org.jacoco.report.check.Limit">
                                <counter>INSTRUCTION</counter>
                                <value>COVEREDRATIO</value>
                                <minimum>0.50</minimum>
                            </limit>
                        </limits>
                    </rule>
                </rules>
            </configuration>
        </execution>
    </executions>
</plugin>
<plugin>
    <groupId>org.apache.maven.plugins</groupId>
    <artifactId>maven-surefire-plugin</artifactId>
    <version>${maven-surefire-plugin.version}</version>
    <configuration>
     <testSourceDirectory>src/test/java/com/my/directory/tests</testSourceDirectory>
        <trimStackTrace>false</trimStackTrace>
        <excludes>
            <exclude>**/SmokeTests.java</exclude>
        </excludes>
    </configuration>
</plugin>
<profile>
    <id>sonar</id>
    <activation>
        <activeByDefault>true</activeByDefault>
    </activation>
    <properties>
        <!-- Edit this URL for sonarQube server -->     <sonar.host.url>https://sonarqubedeveloper.internal</sonar.host.url>
        <sonar.login>mySonarQubeToken</sonar.login>
        <sonar.pullrequest.github.repository>HMH-Core/MyRepoNameWithout</sonar.pullrequest.github.repository>
        <!-- Sonar-JaCoCo properties -->
        <sonar.java.coveragePlugin>jacoco</sonar.java.coveragePlugin>
        <sonar.dynamicAnalysis>reuseReports</sonar.dynamicAnalysis>
        <sonar.jacoco.reportPaths>${basedir}/target/jacoco.exec</sonar.jacoco.reportPaths>
        <java.version>1.8</java.version>
        <sonar.coverage.exclusions>
            **/MyApplication.java, **/*Exception*.java, **/dao/**, **/dto/**, **/entity/**
        </sonar.coverage.exclusions>
    </properties>
</profile>

Okay, this is huge right? Let’s break it down a little. First thing we do is add the SonarQube plugin.

<plugin>
    <groupId>org.sonarsource.scanner.maven</groupId>
    <artifactId>sonar-maven-plugin</artifactId>
    <version>${sonar.version}</version>
</plugin>

If you’re using IntelliJ as your IDE you should be able to run the SonarQube checks from the below Maven view, but you can also run them through the terminal using the mvn sonar:sonar command. But please don’t run this yet, as you may want to wait just a bit longer until we configure our SonarQube url, where the scan results will be found. We’ll do this shortly.

You may have noticed on the .pom snippet that we’re using the jacoco plugin. This is needed for our coverage checks and it should be okay to copy that part just as it is.

<plugin>
    <groupId>org.jacoco</groupId>
    <artifactId>jacoco-maven-plugin</artifactId>
    <version>${jacoco-maven-plugin.version}</version>
    <configuration>
        <destFile>${basedir}/target/jacoco.exec</destFile>
        <dataFile>${basedir}/target/jacoco.exec</dataFile>
    </configuration>
    <executions>
        <execution>
            <id>jacoco-initialize</id>
            <goals>
                <goal>prepare-agent</goal>
            </goals>
        </execution>
        <execution>
            <id>jacoco-site</id>
            <phase>verify</phase>
            <goals>
                <goal>report</goal>
            </goals>
        </execution>
        <execution>
            <!-- Rules for configuring build failure below a threshold limit based
                on code coverage value using Jacoco -->
            <id>check</id>
            <goals>
                <goal>check</goal>
            </goals>
            <configuration>
                <excludes>
                    <exclude>**/*config*.*</exclude>
                </excludes>
                <rules>
                    <rule implementation="org.jacoco.maven.RuleConfiguration">
                        <element>BUNDLE</element>
                        <limits>
                            <limit implementation="org.jacoco.report.check.Limit">
                                <counter>INSTRUCTION</counter>
                                <value>COVEREDRATIO</value>
                                <minimum>0.50</minimum>
                            </limit>
                        </limits>
                    </rule>
                </rules>
            </configuration>
        </execution>
    </executions>
</plugin>

We have functional tests in our repo that we want to trigger as part of the SonarQube checks, so we configure the path to finding these under the maven-surefire plugin. And there we can also mention any tests that we may not to want to run and exclude them if we wish. However, if this doesn’t apply to your case, you may be okay to ignore this part.

<plugin>
    <groupId>org.apache.maven.plugins</groupId>
    <artifactId>maven-surefire-plugin</artifactId>
    <version>${maven-surefire-plugin.version}</version>
    <configuration>
<testSourceDirectory>src/test/java/com/my/directory/tests</testSourceDirectory>
        <trimStackTrace>false</trimStackTrace>
        <excludes>
            <exclude>**/SmokeTests.java</exclude>
        </excludes>
    </configuration>
</plugin>

Now we are looking at the profile piece at the bottom.

<profile>
    <id>sonar</id>
    <activation>
        <activeByDefault>true</activeByDefault>
    </activation>
    <properties>
        <!-- Edit this URL for sonarQube server -->     <sonar.host.url>https://sonarqubedeveloper.internal</sonar.host.url>
        <sonar.login>mySonarQubeToken</sonar.login>
        <sonar.pullrequest.github.repository>HMH-Core/MyRepoNameWithout</sonar.pullrequest.github.repository>
        <!-- Sonar-JaCoCo properties -->
        <sonar.java.coveragePlugin>jacoco</sonar.java.coveragePlugin>
        <sonar.dynamicAnalysis>reuseReports</sonar.dynamicAnalysis>
        <sonar.jacoco.reportPaths>${basedir}/target/jacoco.exec</sonar.jacoco.reportPaths>
        <java.version>1.8</java.version>
        <sonar.coverage.exclusions>
            **/MyApplication.java, **/*Exception*.java, **/dao/**, **/dto/**, **/entity/**
        </sonar.coverage.exclusions>
    </properties>
</profile>

We have a new profile created and there under sonar.host.url we should set the url for our SonarQube instance. We also mention the Java version we’re using and the path to any files that we may want to exclude from the coverage checks handled by jacoco.

But still inside the properties piece, here we’re actually going ahead of ourselves just a little bit, and if you intend to run SonarQube locally and outside the Github context, you may be able to skip some lines and should be already good to run your validation now. However, as the title for this tutorial mentions, our final goal at the end is to display the results coming from the SonarQube checks on Github once a PR is submitted. For this we need these extra fields in the .pom file, such as the name of our repository and token for this SonarQube instance.

Okay, so we are able to run these SonarQube checks locally now. However, let’s do it better and create a Jenkins job that triggers these checks for us. This shouldn’t take too long, but if you may feel like grabbing a cup of coffee, please go ahead and I’ll wait for you here.

Great, you’re back! Okay, where were we? Ah, yes, we’re configuring our Jenkinsfiles for SonarQube as we’ll be running our checks through Jenkins. Cool, so here is the file for this which we are are calling SonarQube .

pipeline {
    agent {
        docker { image "a.linux.image.io/base-ubuntu:16.04-openjdk8_181-builder" }
    }

    environment {
        HOME = "$WORKSPACE"
        app_name = 'my_app_name'
        docker_group = "my-docker-group"
    }

    options {
        skipStagesAfterUnstable()
    }

    stages {

        stage('Checkout') {
            steps {
                git credentialsId: 'myGitCredentials', url: "git@my.repo.com:HMH/myrepo.git", branch: "$branch_name"
            }
        }

        stage('Package') {
            steps {
                sh "mvn clean package"
            }
        }

        stage('Generate Surefire Reports') {
            steps {
                sh 'mvn surefire-report:report'
            }
        }

        stage('SonarQube') {
            steps {
                sh "mvn sonar:sonar -Dsonar.login=${sonar_token}"
            }
        }
    }
}

Please notice that here under the SonarQube stage, our mvn sonar:sonar command has an extra parameter -Dsonar.login=${sonar_token} . This is the token for the SonarQube developer edition. If you’re not sure how to find it, the administrator of your SonarQube account should be able to help you with this.

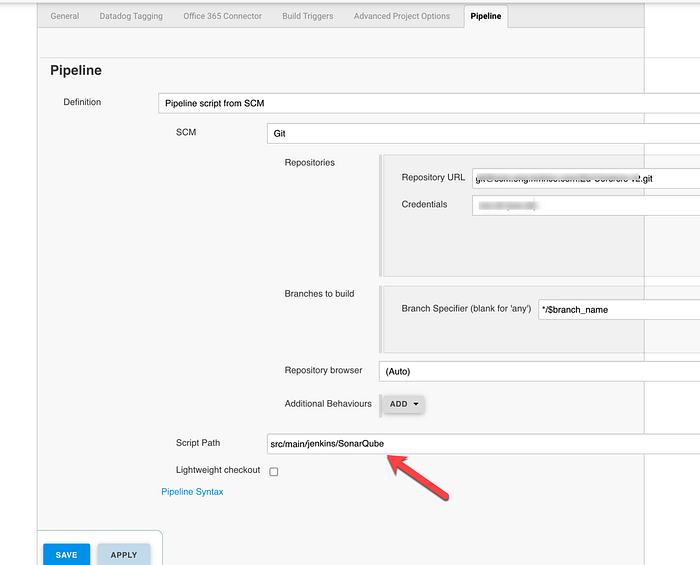

Now on Jenkins and once you have a job set up, you just need to configure it so that it will find the path to this SonarQube file within your repo.

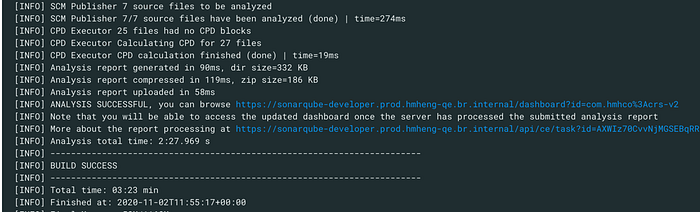

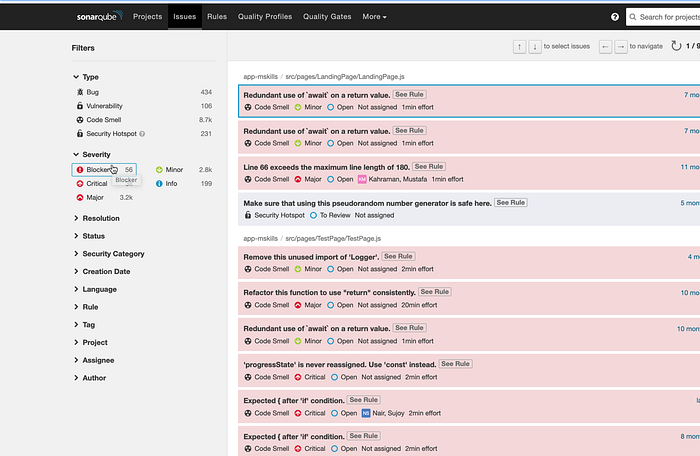

And when you run this job you should be able to see a link to your SonarQube instance and results. Under that instance, you can look for any errors or issues either already existent or just introduced by a certain branch.

Okay, we’re very close to finishing. Now we are only missing the pipeline file for triggering the PR decoration and the Multibranch pipeline that it will hold.

Starting with the pipeline file: Here we are adding the steps for our tests and credentials for checking out our code using Docker.

pipeline {
    agent {
        docker { image "docker.br.hmheng.io/base-ubuntu:16.04-openjdk8_181-builder" }
    }

    environment {
        HOME = "$WORKSPACE"
        app_name = 'my-app-name'
        docker_group = "my-docker-group"
    }

    options {
        skipStagesAfterUnstable()
    }
    stages {

        stage('Checkout') {
            steps {
                git credentialsId: 'myGitCredentiala', url: "git@my.repo.com:HMH/myrepo.git", branch: "$branch_name"
            }
        }

        stage('Package') {
            steps {
                sh "mvn clean package"
            }
        }

        stage('Generate Surefire Reports') {
            steps {
                sh 'mvn surefire-report:report'
            }
        }

        stage('SonarQube') {
            steps {
                script {
                    if (env.CHANGE_ID) {
                        if (env.CHANGE_BRANCH == "develop") {
                            env.BASE_BRANCH = "master"
                        } else {
                            env.BASE_BRANCH = "develop"
                        }

                        sh "mvn sonar:sonar -Dsonar.login=${sonar_token} \
                        -Dsonar.scm.revisions=${GIT_COMMIT} \
                        -Dsonar.pullrequest.key=${env.CHANGE_ID} \
                        -Dsonar.pullrequest.branch=${env.CHANGE_BRANCH} \
                        -Dsonar.pullrequest.base=${env.BASE_BRANCH}"
                    }
                    else {
                        sh "mvn sonar:sonar -Dsonar.login=${sonar_token}"
                    }
                }
            }
        }
    }
}

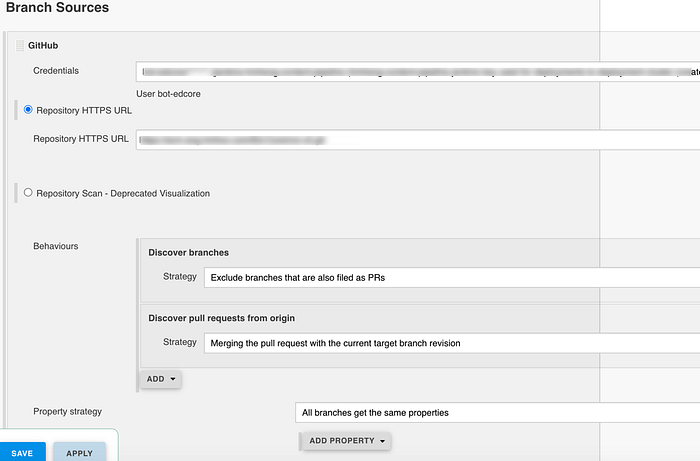

And then a Multibranch Jenkins pipeline with the below configuration:

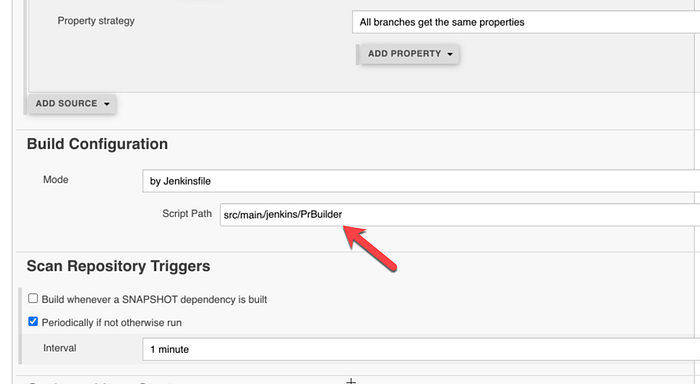

Please notice that here we are pointing to the path of our PrBuilder file. We are also setting a periodical scan that will be checking Github to look for new PRs every 1 minute. This way, if our PR is submitted and you may not see the SonarQube feedback immediately, you may just want to give it another minute or so for the Jenkins job to run or you may even run this job manually if you wish.

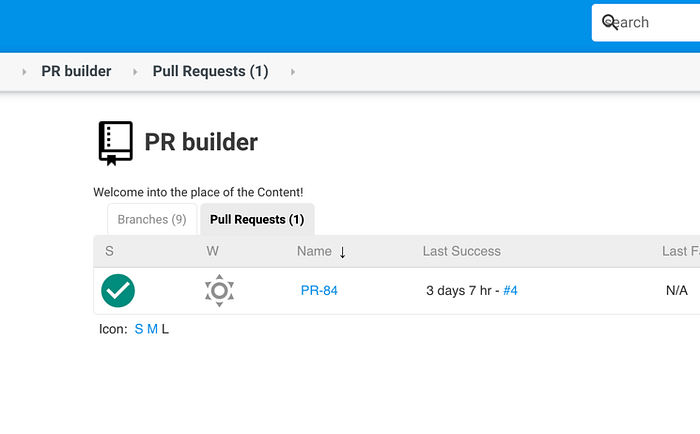

This is what you should see once this Job runs:

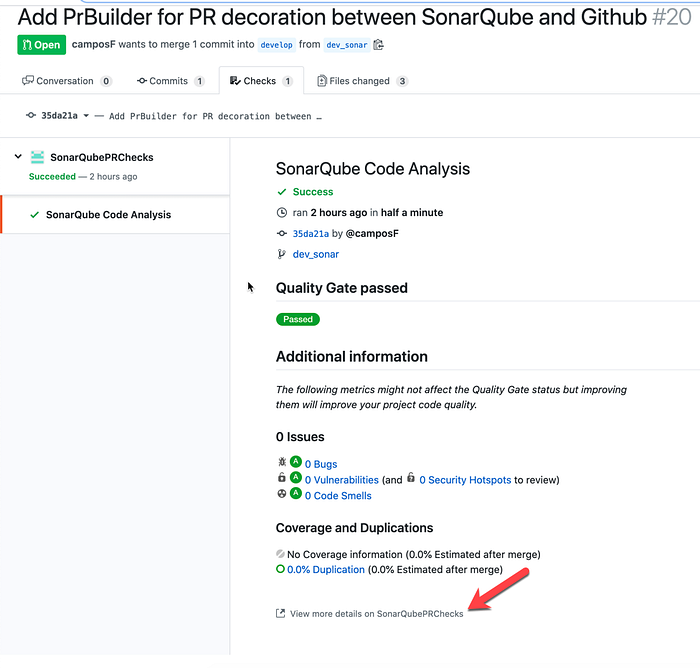

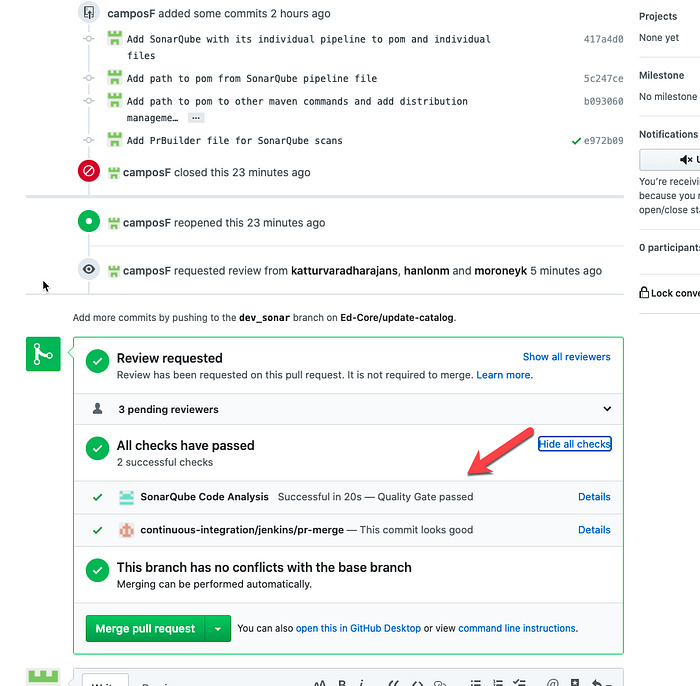

And when it’s finished, we can see our PR displaying the results of the SonarQube analysis right there on Github.

And that’s it! We are done. Is the coffee still warm? I hope so. But if not, just please go and grab another one and pat yourself on the back, as you truly made it till the end of this tutorial. Well done you. :)

I hope you may find this article helpful and thank you for reading.
